KBK Classic

KBK Classic

KBK single-GIRDER suspension CRANES

KBK single girder crane system Demag ELMEC

Single-girder suspension cranes are used to transport all kinds of materials, fast, reliable, surface covering, floor-free and accurate. Single-girder light crane systems can be easily suspended from the rafter or against a concrete ceiling from various suspension points. Additional columns for the crane track are not necessary. In this way, all parts of a hall can be optimally utilized technically and financially. Simple and safe operation due to the low weight and the smooth-running undercarriage. This makes it easy to move the cranes by hand.

One of the advantages of the KBK single-girder suspension cranes is the possibility to lock them with a monorail track, in order to allow the cat to travel back and forth. Getting stuck is impossible due to the hinged ball joints in the undercarriages. Single-girder suspension cranes can also travel in curved or wedge-shaped crane tracks. The cable suspensions for power supply run in the track rail or crane girder profiles. If necessary, the control switch can also be moved independently of the side via a separate parallel mounted rail.

KBK DOUBLE-GIRDER suspension CRANES

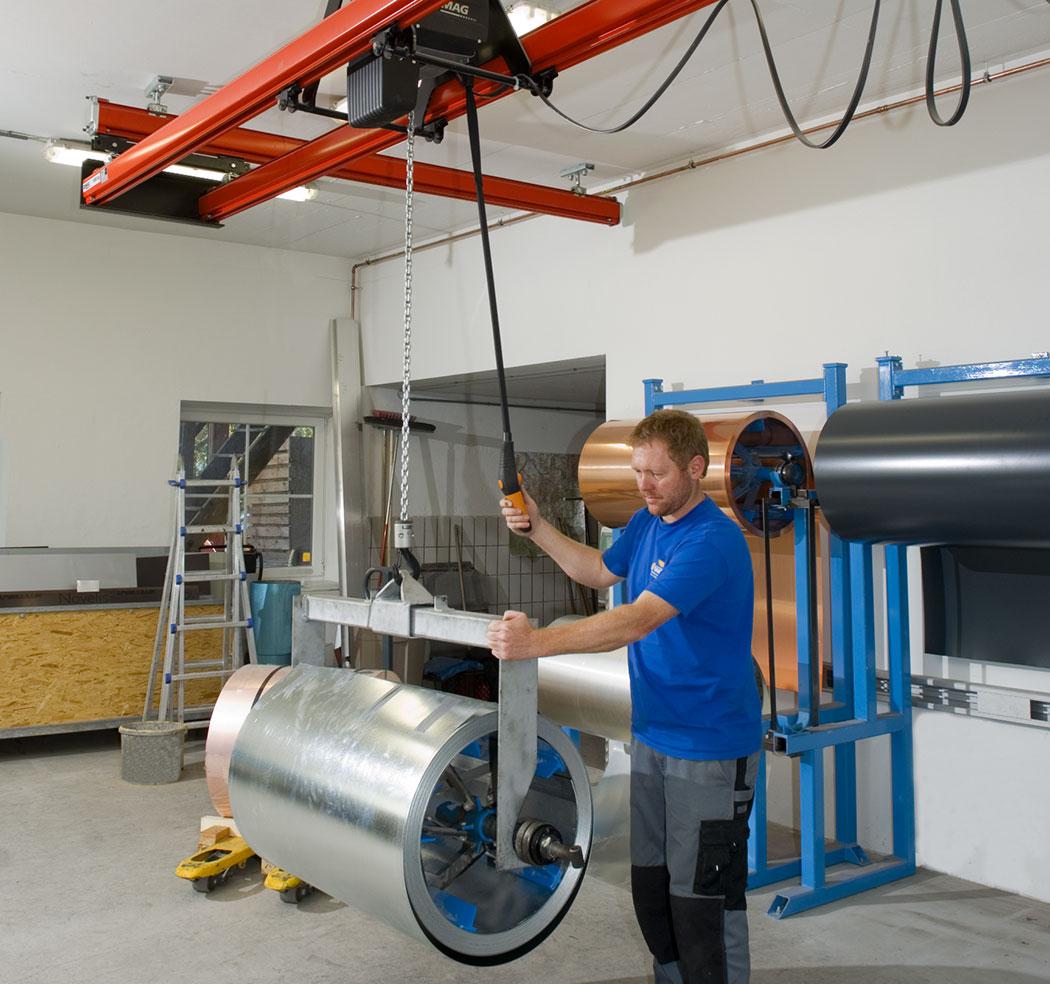

Foto Dubbelligger KBK hangkranen Classic

The KBK double-girder suspension cranes are also characterized by favorable installation dimensions and a low weight. The oscillating suspensions largely absorb the horizontal forces during starting, braking or buffer shocks. KBK double-girder suspension cranes are very suitable for halls with a light construction. By placing the lifting unit in the cat frame, which is positioned between the two crane girders, the most optimal lifting height is achieved with KBK double-girder suspension cranes. KBK double-girder suspension cranes make it possible to realize large spans by suspending the suspension crane from more than two crane tracks.

CHARACTERISTICS

  • For payloads up to 3,200 kg
  • KBK is flexible, keeps your floor clear and increases efficiency
  • A proven long service life of all components
  • Complete range: bends, switches, turning and drop-off stations
  • Suitable for chain hoist or E-balancer applications
  • Easy to move by hand
  • Easy to assemble, move and expand
  • Free design for your specific application
